Work Wheels

Model #W-S1-3P-MR-19x8

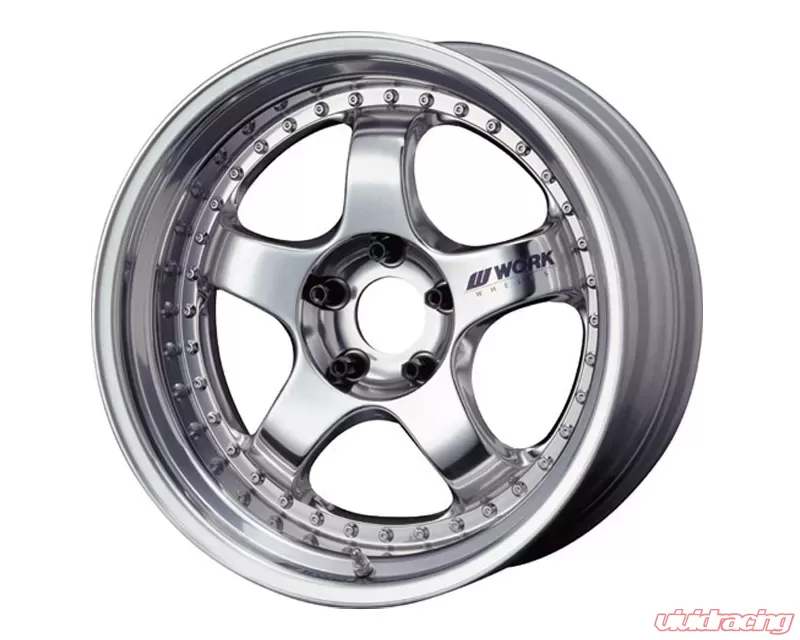

Meister S1 3-Piece. Meister series has been the one of the most recognized WORK wheels in our line up. The Meister S1 3P is a true three piece modular construction wheel. Each wheel is constructed with our advanced forming outer and inner rim barrel with bolt on center disk. The advantage of three piece wheels are, strength, rebuildable and wider rim width. Very popular with larger sport coupe that require wider rim width. Work three piece wheels are stiffer and suitable for track use. As one can expect with WORK Wheels, there is a wide range of widths and customization options to choose from.

Available Colors:

• Standard Color: Silver and White
• Optional Color: Bright Buff Finish

Features:

• 3-Piece Construction
• Low pressure cast center disk
• Spun forged step rim barrel
• 1pc Valve Stem in Gold or Black

Wheel Specs:

• 19x8 - 19x12.5x

Wheel Offset and Pattern Chart
Disk Type	Rim Depth (mm)				Available Patterns (PCD)
	45xm	5xmm	71mm	83mm
STANDARD DISK (A DISK)	+48mm Offset	+35xm Offset	+22mm Offset	+9mm Offset	5x98~5x120.65x
DEEP RIM DISK (O DISK)		+42mm Offset	+29mm Offset	+16mm Offset	5x98~5x130
BIG CALIPER DISK (L DISK)	+38mm Offset	+25xm Offset	+12mm Offset	-1mm Offset	5x98~5x120.65x
BIG CALIPER DISK (R DISK)	+31mm Offset	+18mm Offset	+5xm Offset	-8mm Offset	5x98~5x120
BIG CALIPER DISK (T DISK)	+24mm Offset	+11mm Offset	-2mm Offset	-15xm Offset	5x98~5x114.3

Notes:

• Please look over all options before placing order!
• When selecting your wheel options you need to select Disk Type. Then the Offset and Bolt Pattern that goes with that disk type.
